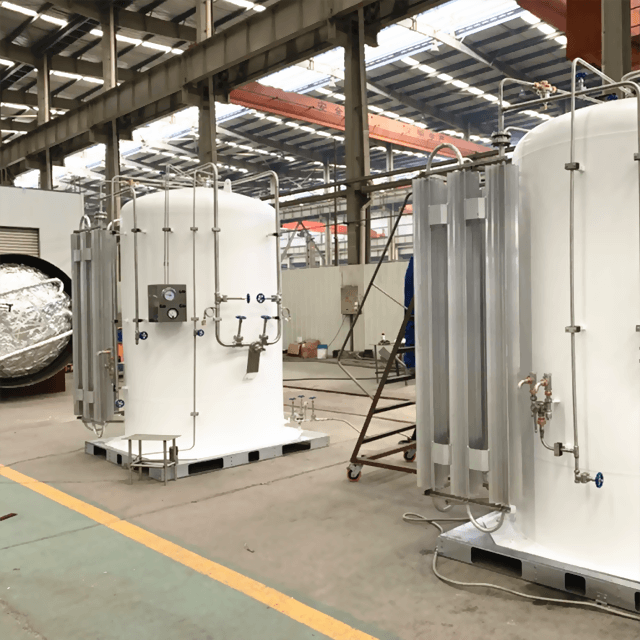

Our factory designs and manufactures the whole series of vertical and horizontal LNG cryogenic storage tanks according to the GB150 and GB18442 standards applying vacuum powder insulation or high vacuum multi-layer insulation, the vessels are with good thermal insulation perfromance, compact structure, easy operation and maintenance. It's already widely used in the LNG vaporization station, peaking station, filling stations and liquefaction plants and other places.
Our factory also offers a series of engineering services and turnkey projects for various LNG gasification station design, equipment matching, system automation, engineering installation, debugging, trainning and after-sales service.
Model | Effect Volume(m3) | Working Pressure(Mpa) | Static Evaporation Rate(%) | Empty Weight(kg) | Dimension(mm) | Thermal Insulating Type |
CFLP-10/0.8 | 10 | 0.8 | ≤0.55 | 6266 | Φ2216X6700 | Vacuum Powder |
CFLP-15/0.8 | 15 | 0.8 | ≤0.53 | 7880 | Φ2316X8443 | Vacuum Powder |
CFLP-20/0.8 | 20 | 0.8 | ≤0.50 | 10063 | Φ2316X8297 | Vacuum Powder |
CFLP-30/0.8 | 30 | 0.8 | ≤0.44 | 14100 | Φ2616X11463 | Vacuum Powder |
CFLP-50/0.8 | 10 | 0.8 | ≤0.35 | 18890 | Φ2616X13318 | Vacuum Powder |
CFLP-60/1.2 | 60 | 1.2 | ≤0.32 | 23246 | Φ3020X15550 | Vacuum Powder |
CFLP-100/0.8 | 100 | 0.8 | ≤0.25 | 36152 | Φ3520X17786 | Vacuum Powder |
CFLP-150/0.8 | 150 | 0.8 | ≤0.225 | 48380 | Φ3720X22834 | Vacuum Powder |
