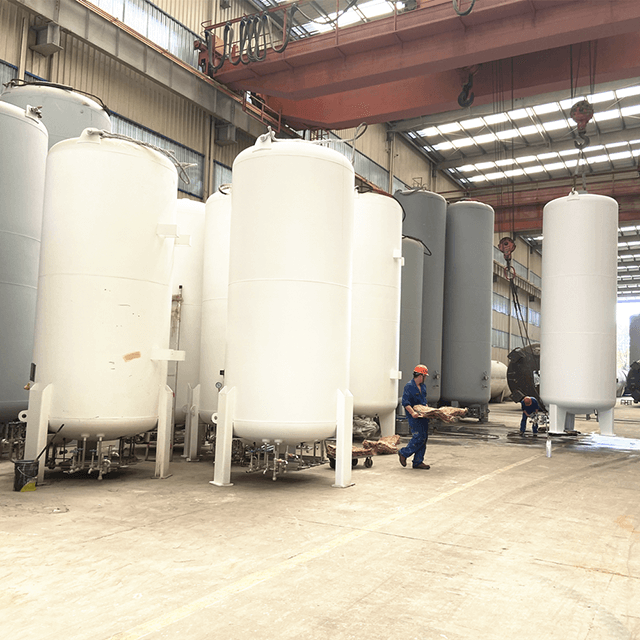

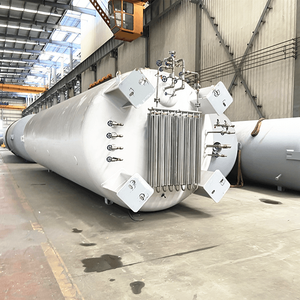

Vacuum powder insulation cryogenic liquid storage tank is used for storage and supply of cryogenic liquid like liquid oxygen, liquid nitrogen, liquid argon and liquid carbon dioxide. It has advantages of area-saving, safe, reliable and convenient maintenance, ect., and has been widely used in gas, chemical, mechanical, metallurgy, electronics, medical, glass, mining, nuclear power and other industries. The tank supplies cryogenic liquid form the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can also be designed and manufactured according to user's requirements.
Model | Effect Volume(m3) | Working Pressure(Mpa) | Evaporation(%) | Empty Weight(kg) | Dimension(mm) | Thermal Insulating Type |
LO2 | LN2 | LAR |
CFL-2/0.8 | 2 | 0.8 | ≤0.67 | ≤1.0 | ≤0.7 | 2530 | Φ1912X3295 | Vacuum Powder |
CFL-3/0.8 | 3 | 0.8 | ≤0.6 | ≤0.9 | ≤0.63 | 2972 | Φ1912X3948 | Vacuum Powder |
CFL-5/0.8 | 5 | 0.8 | ≤0.435 | ≤0.65 | ≤0.46 | 3896 | Φ1912X5254 | Vacuum Powder |
CFLS-5/1.6 | 5 | 1.6 | ≤0.435 | ≤0.65 | ≤0.38 | 3997 | Φ1912X5254 | Vacuum Powder |
CFLP-10/0.8 | 10 | 0.8 | ≤0.36 | ≤0.55 | ≤0.38 | 6068 | Φ2216X6460 | Vacuum Powder |
CFLS-10/1.6 | 10 | 1.6 | ≤0.36 | ≤0.55 | ≤0.38 | 6120 | Φ2216X6460 | Vacuum Powder |
CFLP-15/0.8 | 15 | 0.8 | ≤0.35 | ≤0.53 | ≤0.37 | 7880 | Φ2316X8048 | Vacuum Powder |
CFLS-15/1.6 | 15 | 1.6 | ≤0.35 | ≤0.55 | ≤0.37 | 7900 | Φ2316X8048 | Vacuum Powder |
CFLP-20/0.8 | 20 | 0.8 | ≤0.33 | ≤0.5 | ≤0.35 | 9014 | Φ2616X8061 | Vacuum Powder |
CFLS-20/1.6 | 20 | 1.6 | ≤0.33 | ≤0.5 | ≤0.35 | 9730 | Φ2616X8061 | Vacuum Powder |
CFLP-30/0.8 | 30 | 0.8 | ≤0.29 | ≤0.44 | ≤0.31 | 11910 | Φ2616X10993 | Vacuum Powder |
CFLS-30/1.6 | 30 | 1.6 | ≤0.29 | ≤0.44 | ≤0.31 | 12880 | Φ2616X10993 | Vacuum Powder |
CFLP-50/0.8 | 50 | 0.8 | ≤0.23 | ≤0.35 | ≤0.24 | 18326 | Φ3020X12657 | Vacuum Powder |
CFLS-50/1.6 | 50 | 1.6 | ≤0.23 | ≤0.35 | ≤0.24 | 20920 | Φ3020X12657 | Vacuum Powder |
CFLP-100/0.8 | 100 | 0.8 | ≤0.16 | ≤0.25 | ≤0.17 | 31362 | Φ3520X16956 | Vacuum Powder |
CFLS-100/1.6 | 100 | 1.6 | ≤0.16 | ≤0.25 | ≤0.17 | 36433 | Φ3520X16956 | Vacuum Powder |
CFLS-200/0.8 | 200 | 0.8 | ≤0.13 | ≤0.2 | ≤0.14 | 68585 | Φ4128X22700 | Vacuum Powder |
