The cryogenic vessels produced by our company are mainly cryogenic liquid storage tanks, cryogenic tanks, cryogenic ISO tank container and air temperature vaporizer.The products are widely used in petrochemical, coal chemical industry, chemical, medicine, environmental protection, steel, power plant, medical, food, petroleum, electronics, gas, nuclear power and other related industries. It is the first mission of our employees to provide customers with quality, safe and reliable products and services. We always adhere to the "quality first" as the company's core values and business philosophy. Our factory has outstanding performances in terms of security, stability and environmental protection, is trustworthy for providing system solutions, meeting critical mission needs and providing sound technical support.
Cryogenic Equipment Professional Manufacturer

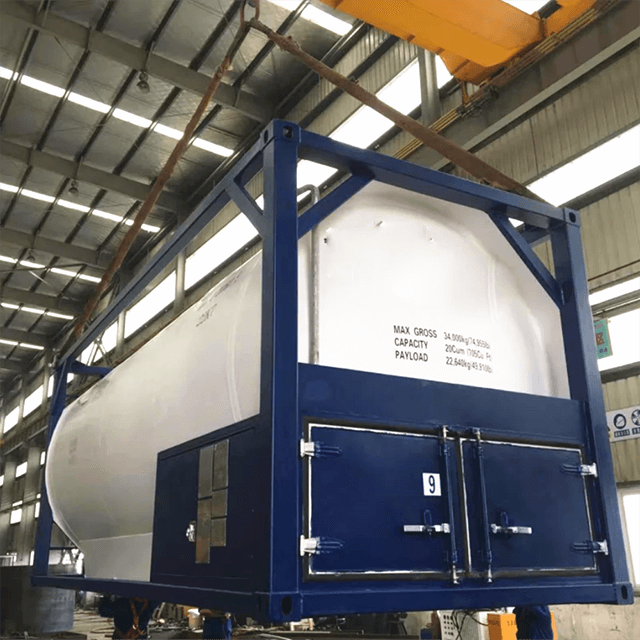

Cryogenic Tank
Model | ICC-TC-18400/8 | ICC-TC-1844/17 | ICC-TCF16.2/1.6 | ICC-TCC16/0.8 | ICC-TCC16/0.8 | ICC-TCC16/1.6 |
Design Pressure(Mpa) | 0.88 | 1.68 | 1.60 | 0.80 | 0.80 | 1.76 |
Geometric Volume(m3) | 20 | 20 | 16 | 18 | 18 | 18 |
Main Material | S30408/Q345R | S30408/Q345R | S30408/Q345R | S30408/Q345R | S30408/Q345R | S30408/Q345R |
Thermal-insulating Type | High Vacuum Multilayer Winding Insulation | High Vacuum Multilayer Winding Insulation | High Vacuum Multilayer Winding Insulation | High Vacuum Multilayer Winding Insulation | High Vacuum Multilayer Winding Insulation | High Vacuum Multilayer Winding Insulation |
Tank Size | 6058X2438X2591 | 6058X2438X2591 | 6058X2438X2591 | 6058X2438X2591 | 6058X2438X2591 | 6058X2438X2591 |
Container Size | Φ2412X5950 | Φ2412X5950 | Φ2400X5936 | Φ2416X5708 | Φ2416X5708 | Φ2416X5720 |
Weight(KG) | 9360 | 11360 | 9950 | 10307 | 10307 | 12515 |
Container Class | C3 | C3 | C3 | C3 | C3 | C3 |
