Cryogenic tanks are specialized vessels designed to store and transport liquefied gases at extremely low temperatures. These tanks are essential for various industries, including healthcare, aerospace, and energy, where maintaining the integrity of cryogenic fluids is crucial. Understanding how these tanks work and the technologies involved in keeping them cold is essential for businesses that rely on cryogenic storage.
Types of cryogenic tanks
Cryogenic tanks are used to store and transport liquefied gases at extremely low temperatures. There are two main types of cryogenic tanks: vacuum-insulated and foam-insulated.
Vacuum-insulated tanks

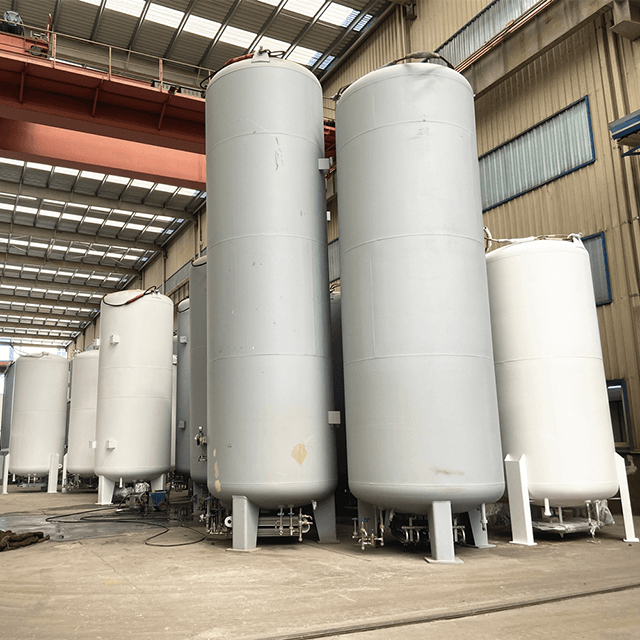

Vacuum-insulated tanks are constructed with two layers of stainless steel, with a vacuum space between them. This vacuum space acts as an insulator, preventing heat transfer between the inner and outer layers of steel. The vacuum insulation is effective in minimizing heat transfer, which helps to keep the cryogenic fluid at its low temperature.
Vacuum-insulated tanks are commonly used for long-term storage of cryogenic fluids, such as liquid nitrogen, oxygen, and argon. They are designed to withstand the pressure and temperature changes that occur during the storage and transportation of these fluids.
Foam-insulated tanks
Foam-insulated tanks are constructed with a single layer of stainless steel, with a layer of polyurethane foam insulation around the tank. The foam insulation is effective in minimizing heat transfer, but it is not as effective as vacuum insulation.
Foam-insulated tanks are commonly used for short-term storage of cryogenic fluids, such as liquid nitrogen for cryotherapy. They are less expensive than vacuum-insulated tanks and are suitable for applications where the cryogenic fluid does not need to be stored for long periods of time.
Technologies for keeping cryogenic tanks cold
Cryogenic tanks are designed to store and transport liquefied gases at extremely low temperatures. To maintain these low temperatures, several technologies are used in cryogenic tanks.
Insulation
Insulation is a critical component of cryogenic tanks. It helps to minimize heat transfer between the outside environment and the cryogenic fluid inside the tank. There are two main types of insulation used in cryogenic tanks: vacuum insulation and foam insulation.
Vacuum insulation is used in vacuum-insulated tanks, where two layers of stainless steel are separated by a vacuum space. This vacuum space acts as an insulator, preventing heat transfer between the inner and outer layers of steel. Foam insulation is used in foam-insulated tanks, where a layer of polyurethane foam insulation is applied around the tank.
Both types of insulation are effective in keeping the cryogenic fluid at its low temperature. However, vacuum insulation is more effective than foam insulation, and is commonly used for long-term storage of cryogenic fluids.
Pressure control
Pressure control is another important technology used in cryogenic tanks. As the temperature of the cryogenic fluid inside the tank decreases, the pressure inside the tank also decreases. This can cause the cryogenic fluid to evaporate and create gas, which can increase the pressure inside the tank.
To prevent this, cryogenic tanks are equipped with pressure relief valves. These valves automatically release gas from the tank when the pressure inside the tank exceeds a certain level. This helps to maintain a safe pressure inside the tank and prevent any damage to the tank or the cryogenic fluid.
Monitoring systems
Monitoring systems are used to keep track of the temperature and pressure inside cryogenic tanks. These systems typically include temperature sensors, pressure gauges, and alarm systems.
Temperature sensors are used to monitor the temperature of the cryogenic fluid inside the tank. Pressure gauges are used to monitor the pressure inside the tank. Alarm systems are used to alert personnel if the temperature or pressure inside the tank exceeds a certain level.
Monitoring systems are essential for ensuring the safety and integrity of cryogenic tanks. They help to detect any potential problems early on, and allow personnel to take appropriate action to prevent any accidents or damage to the tank.
Factors affecting cryogenic tank performance
Cryogenic tanks are designed to store and transport liquefied gases at extremely low temperatures. However, several factors can affect their performance and ability to maintain these low temperatures.
Ambient temperature
Ambient temperature is one of the most significant factors that can affect the performance of cryogenic tanks. If the ambient temperature is higher than the temperature of the cryogenic fluid inside the tank, heat can be transferred from the outside environment to the tank, causing the cryogenic fluid to evaporate and increase the pressure inside the tank.
To mitigate this, cryogenic tanks are designed to be used in specific temperature ranges. If the ambient temperature exceeds this range, it can cause the cryogenic fluid to evaporate more quickly than expected, leading to a loss of product and potentially dangerous pressure increases.
Tank design and materials
The design and materials used in cryogenic tanks can also affect their performance. For example, the thickness of the tank walls, the type of insulation used, and the materials used for the valves and fittings can all impact the tank’s ability to maintain low temperatures.
Cryogenic tanks are typically constructed from materials that have low thermal conductivity, such as stainless steel or aluminum. The thickness of the tank walls and the type of insulation used will depend on the specific application and the temperature range required.
Usage and maintenance
Proper usage and maintenance are critical for ensuring the optimal performance of cryogenic tanks. Misuse or neglect can lead to damage or failure of the tank, which can compromise its ability to maintain low temperatures.
For example, if a cryogenic tank is not properly vented before filling, it can create a vacuum inside the tank that can cause the tank to collapse. Similarly, if the tank is not properly cleaned and maintained, it can become contaminated, which can affect the quality of the cryogenic fluid and potentially cause damage to the tank.
Conclusion
Cryogenic tanks are essential for storing and transporting liquefied gases at extremely low temperatures. They are used in various industries, including healthcare, aerospace, and energy, where maintaining the integrity of cryogenic fluids is crucial. Understanding how these tanks work and the technologies involved in keeping them cold is essential for businesses that rely on cryogenic storage
