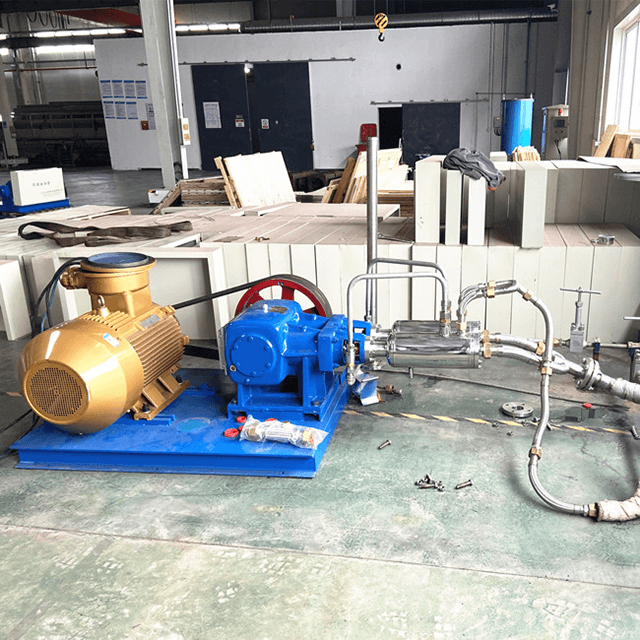

The reciprocating cryogenic liquid co2 pump applies to the filling system of co2, oxygen, nitrogen and argon, with the usage of making the low- temperature liquid in the tank pressurized and boiled off, then filling them into gas-jar or pipe. It is stable, easy to operate, convenient to maintain. In proper conditions, its starting time is about 5 to 10 minutes. The pump head can be offloaded separately and reloaded after examination, which would be finished within 2 to 4 hours.
Technical parameters
Medium of transmitting: liquid oxygen, liquid nitrogen, liquid argon, liquid CO2
Model: horizontal style, one cylinder, plunger pump
Flow amount: 100-450 L/h, 200-600L/h, 400-800L/h, 1000-2000 L/h
Maximum outflow pressure: 16.5Mpa to 35Mpa,
Minimum inflow pressure: 0.02Mpa
Maximum inflow pressure: 0.8Mpa
Input power: 380V, 3 phase cables, 50Hz
Rotary speed of the motor: 600-1250 rpm
Motor power: 5.5 KW, 7.5 KW,11KW,18.5KW
(Special pump can be made to order according to users' requirement with special flow amount and special pressure)
