A cryogenic storage tank is a specialized container designed to store materials at extremely low temperatures. These tanks are essential for the storage of liquefied gases such as oxygen, nitrogen, argon, helium, and hydrogen. The primary purpose of a cryogenic storage tank is to maintain these gases in their liquid state, which requires temperatures well below their boiling points. For instance, liquid nitrogen must be stored at temperatures below -196°C (-320°F).
How Does a Cryogenic Storage Tank Work?

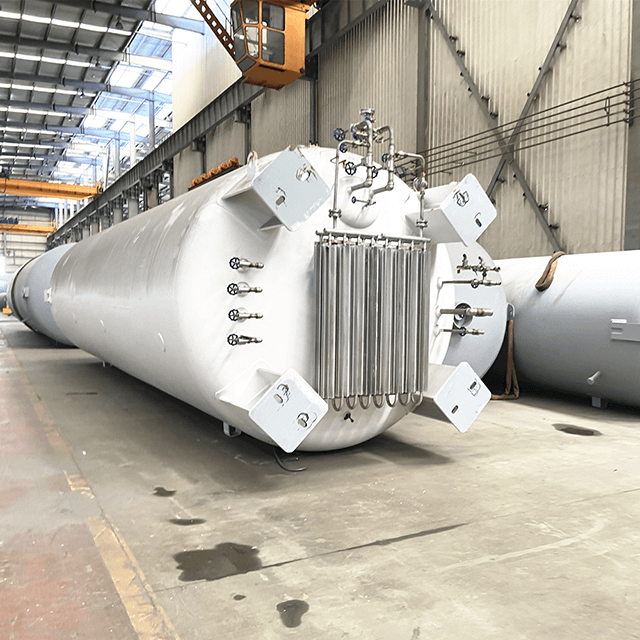

Cryogenic storage tanks operate based on principles of thermodynamics and insulation. The tanks are typically composed of two main parts: an inner vessel and an outer vessel. The inner vessel, which holds the cryogenic liquid, is usually made of stainless steel to withstand the low temperatures and prevent contamination. The outer vessel is designed to provide structural support and additional insulation.
The space between the inner and outer vessels is evacuated to create a vacuum, which significantly reduces heat transfer by conduction and convection. This vacuum insulation is crucial for maintaining the low temperatures required to keep the gases in their liquid state. Additionally, the tanks are often equipped with multilayer insulation materials, such as aluminized Mylar, to further minimize heat ingress.
Cryogenic tanks also include various safety and operational features. Pressure relief valves are installed to prevent over-pressurization, which can occur as the liquid gases evaporate and expand. There are also level sensors and temperature monitors to ensure the tank operates within safe parameters. Some advanced tanks may even have automated systems to manage the filling and dispensing of the cryogenic liquids.
What Are the Benefits of Using Cryogenic Storage Tanks?
1. Efficient Storage of Gases
Cryogenic storage tanks allow for the efficient storage of large volumes of gases in a compact space. By storing gases in their liquid form, which is much denser than their gaseous state, these tanks can hold a significant amount of material in a relatively small footprint. This is particularly beneficial for industries that require large quantities of gases, such as healthcare, manufacturing, and research.
2. Enhanced Safety
Storing gases in cryogenic tanks is generally safer than storing them in high-pressure gas cylinders. The low temperatures and vacuum insulation reduce the risk of gas leaks and explosions. Additionally, the tanks are equipped with safety features such as pressure relief valves and emergency venting systems to handle any unexpected pressure build-ups.
3. Cost-Effective
Using cryogenic storage tanks can be more cost-effective in the long run. The efficient storage and reduced risk of gas loss mean that companies can save money on gas purchases. Furthermore, the durability and longevity of these tanks reduce the need for frequent replacements, leading to lower maintenance costs.
4. Versatility
Cryogenic storage tanks are versatile and can be used in various applications. They are essential in the medical field for storing liquid oxygen and nitrogen, which are used in surgeries and cryopreservation. In the industrial sector, these tanks store gases used in welding, cutting, and other manufacturing processes. They are also crucial in the energy sector for storing liquefied natural gas (LNG) and hydrogen, which are used as clean energy sources.
5. Environmental Benefits
Cryogenic storage tanks contribute to environmental sustainability. By enabling the storage and transportation of clean energy sources like LNG and hydrogen, these tanks support the transition to greener energy solutions. Additionally, the efficient storage reduces the need for frequent gas deliveries, thereby lowering the carbon footprint associated with transportation.
Conclusion
Cryogenic storage tanks are vital components in various industries due to their ability to store liquefied gases at extremely low temperatures. Their design and functionality ensure the safe, efficient, and cost-effective storage of these materials. With their numerous benefits, including enhanced safety, versatility, and environmental advantages, cryogenic storage tanks continue to play a crucial role in advancing technology and industry standards.
