The cryogenic pump produced by our company has the advantages of advanced technology, compact structure, high pressure starting, no dispersing, small vibration, long time continuous running without leakage, low noise, high efficiency and high automation. All the performance have reached the leading level in China.
Name
L-CNG High Pressure
Cryogenic Pump
LNG Filling Pump
Working Medium
LNG
LNG
Flow
500-5000L/H
2-40m3/h
Inlet Pressure(Mpa)
0.02-1.2Mpa
Outlet Pressure(Mpa)
20-100Mpa
1.6-5.0Mpa
Operation Conditions
L-CNG auto gas filling/L-CNG cylinder filling/L-CNG oilfield
The ultra high pressure cryogenic pump is mainly used in various well cementing, acidification, well repair, well washing operation, well cutting operation, well head decompression and oil recovery and food industry of oil field, carbon dioxide huff and puff and food industry, supercritical extraction chemical industry, plastic foam molding, high pressure pipeline pressure test, high pressure container filling and so on.
Name
Ultra High Pressure
Cryogenic Pump
Larger Flow Cryogenic Liquid Pump
Working Medium
LO2/LN2/LAr/LCO2/LNG/H2O
LO2/LN2/LAr/LH2/LCO2/LC2H4/NH3/PVDF/CH3/LN2O
Flow
10-10000L/H
15000-60000L/H
Inlet Pressure(Mpa)
0.02-1.6Mpa
Outlet Pressure(Mpa)
25-100Mpa
1.6-5.0Mpa
Operation Conditions
Airspace filed/Military Industry/Oil Field
Medical and chemical industry/Loading and unloading vehicle/ship/truck/boat

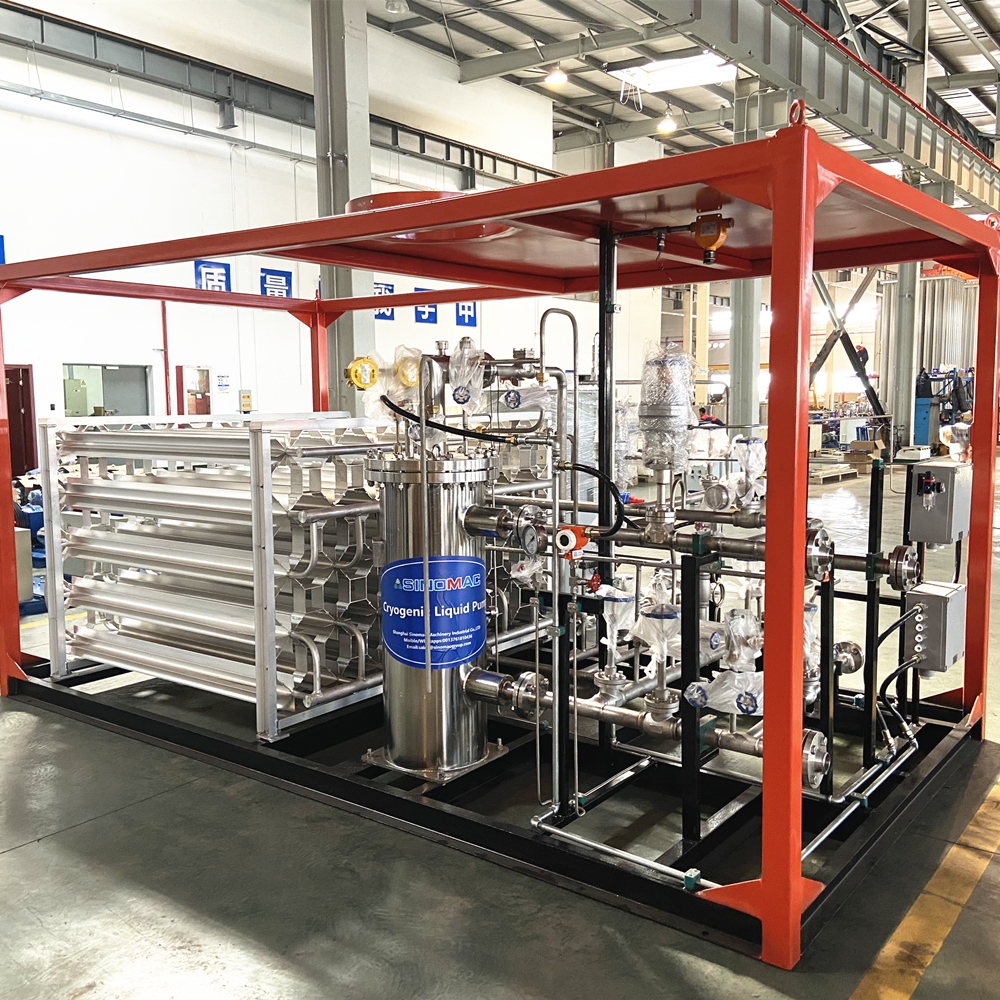

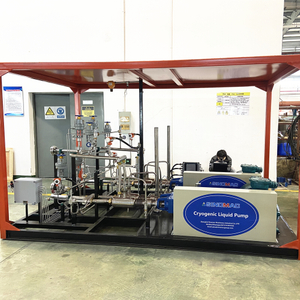

Mobile LNG Filling Skid-mounted
Mobile LNG Filling Skid is suitable for LNG car filling, Dewar bottle, high pressure tank filling,mine, construction site loading, emergency rescue and other working conditions.
Model
MUBP-40
MUBP-80
MUBP-160
MUBP-240
Inlet Pressure(Mpa)
0.02-1.2Mpa
Outlet Pressure(Mpa)
1.6
2.5
5.0
1.6
2.5
5.0
1.6
2.5
1.6
Pump Flow(m3/h)
6
12
24
36
Power(kw)
7.5
11
18.5
11
18.5
37
22
37
37
Standard Configuration
LNG liquid pump/EAG release system/Liquid loading system/PLC control system
Optional Configuration
Gas boosting system/cryogenic hose/instrument air system/computer electrical monitoring system/liquid metering and charging system.
Product Features
1. Low inlet pressure, high discharge pressure, working without dispersing
2. Avoid the waste of BOG, large output, high efficiency, low energy consumption, wide application
3. Stable operation and longer service life. The pump could be started directly when load liquid again.
4. Less investment,easy operation, economic benefits

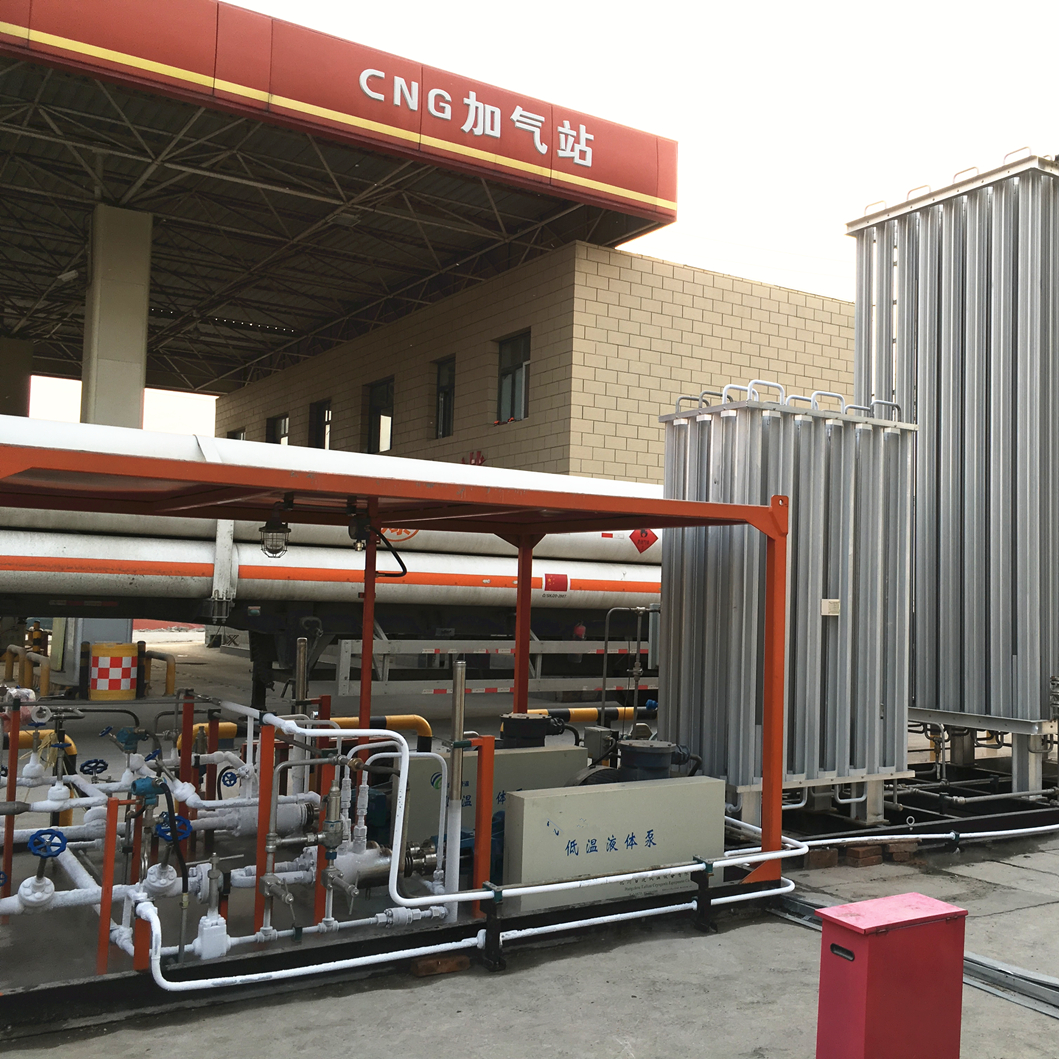

Mobile L-CNG High Pressure Gas Filling Skid-Mounted
The Mobile L-CNG high pressure gas filling skid-mounted is suitable for the LNG gas station transformation,the LNG bus station loading and the CNG high pressure pipe network gas supply.
Model
MUBP1200
MUBP1500
MUBP2000
MUBP2500
MUBP3000
MUBP5000
Inlet Pressure(Mpa)
0.02-1.2Mpa
Outlet Pressure(Mpa)
25Mpa
Pump Flow(Nm3/h)
720
900
1200
1500
1800
3000
Power(kw)
18.5
22
30
37
45
75
Standard Configuration
L-CNG high pressure cryogenic liquid pump, EAG high pressure discharge system, high pressure gasification system, PLC automatic control system
Optional Configuration
Tank car pressure booster system,low temperature hose, instrument air system,computer electrical monitoring system, filling metering system
Product Features:
1. Small operation vibration, good sealing performance, no leakage
2. Large flow, high efficiency, 24 hours continuous working
3. Compared with compressor, it has obvious advantage of energy saving, and energy consumption is 1/6-1/10 of compressor.
4. Easy installation, less investment, economic benefits

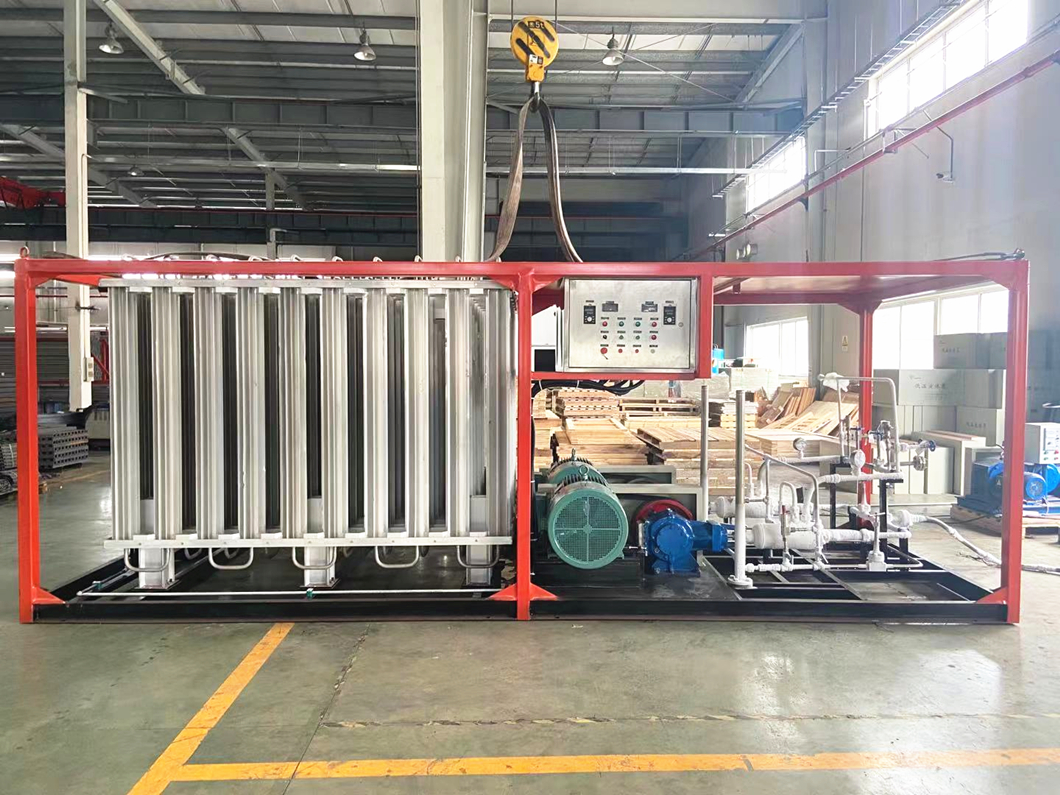

Oil Field High Pressure Gas Skid-Mounted(Fracturing Technology)
High pressure gas skid-mounted is suitable for twice oil recovery. It is more convenient and easy to use in the open oil field and offshore drilling platform. This skid-mounted can greatly reduce the investment of the user’s equipment and the economic benefit is remarkable.
Name
Parameter
Form
Mobile horizontal skid-mounted
Working Medium
Liquid CO2/Nitrogen
Working Temperature
-20℃to -196℃
Gas Capacity
1000/2000/3000/4000/5000Nm3/h
Inlet Pressure
0.2-1.6Mpa
Max Outlet Pressure
20/25/35/40/70/100Mpa
Cryogenic L-CNG/LNG Pump
The cryogenic pump produced by our company has the advantages of advanced technology, compact structure, high pressure starting, no dispersing, small vibration, long time continuous running without leakage, low noise, high efficiency and high automation. All the performance have reached the leading level in China.
Name
L-CNG High Pressure
Cryogenic Pump
LNG Filling Pump
Working Medium
LNG
LNG
Flow
500-5000L/H
2-40m3/h
Inlet Pressure(Mpa)
0.02-1.2Mpa
Outlet Pressure(Mpa)
20-100Mpa
1.6-5.0Mpa
Operation Conditions
L-CNG auto gas filling/L-CNG cylinder filling/L-CNG oilfield
LNG Vehicle Filling Station

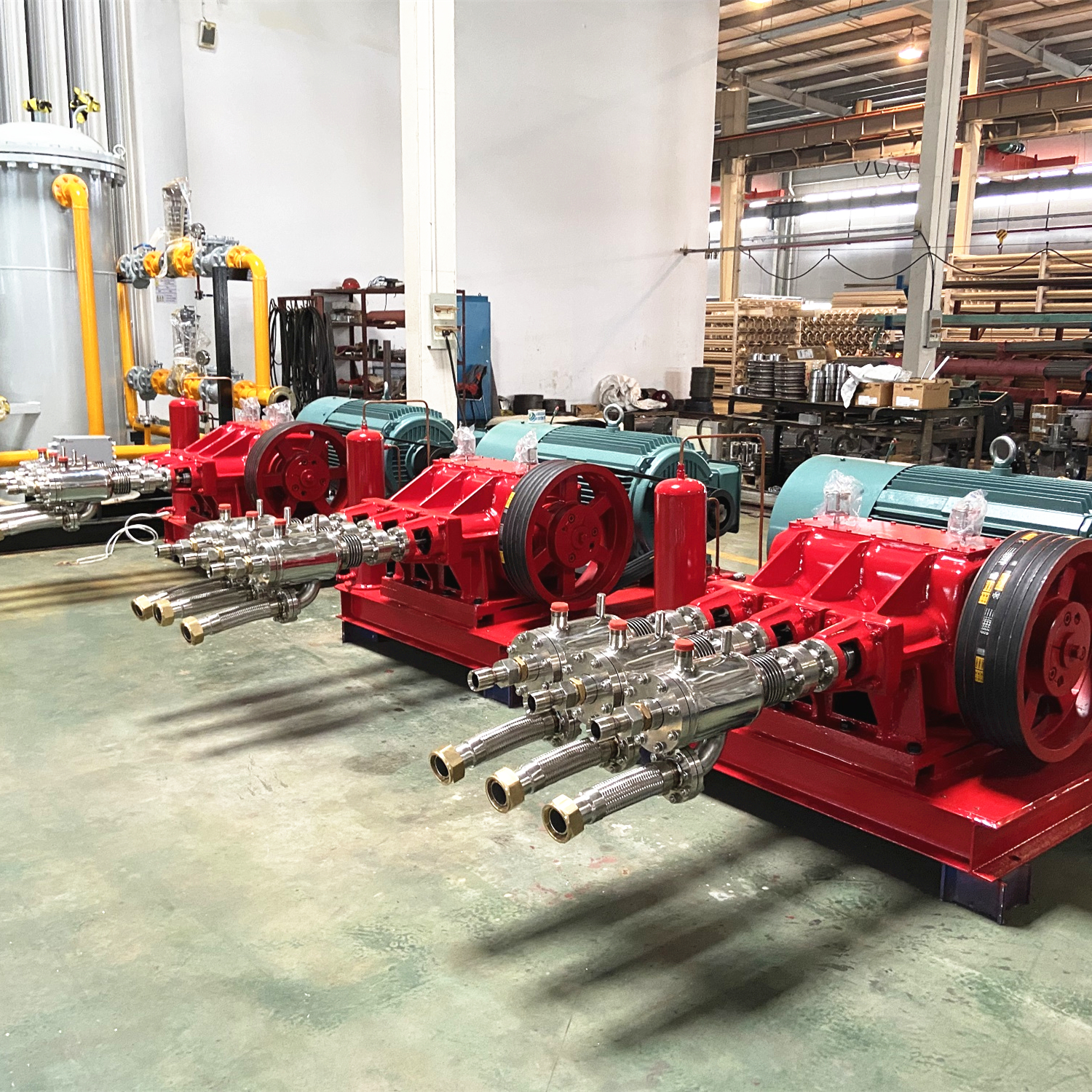

Liquid Carbon Dioxide Pumps
Application: LCO2 pump mainly used for liquid carbon dioxide dewar cylinder filling.
Main Technical Parameters:
Flow:100-4000L/H
Normal Max Pressure:10Mpa(high pressure LCO2 pump could make it according to customer’s requirement)
Model
Flow(L/H)
Inlet Pressure(Mpa)
Outlet Pressure(Mpa)
Power(Kw)
SMC 100-400/100
100-400
1.38-2.4
10
5.5
SMC 300-600/100
300-600
5.5
SMC 500-900/100
500-900
5.5
SMC 600-1200/100
600-1200
7.5
SMC 1000-2000/100
1000-2000
7.5
Our factory is a technology enterprise specialized in R&D,manufacture various of air separation plant and cryogenic application equipment. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. It has more than 40 years of experience in research and development, design and manufacture of cryogenic products and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2010 quality management system certification/CE certification and obtained a number of national invention patents. Our main products:
1. LNG/LCNG Gas Refueling Station
2. Hydrogen Refueling Station
3. Cryogenic Liquid Gas Filling Skid
4. Cryogenic Liquid Pump
5. Air Ambient Vaporizer
6. Water Bath Vaporizer
Now our company's cryogenic products has been exported to America, Italy, Bolivia, Thailand, Egypt, India, Middle East, Africa and so on.
Welcome all the customers to visit our factory and cryogenic productsproduction line working site.
