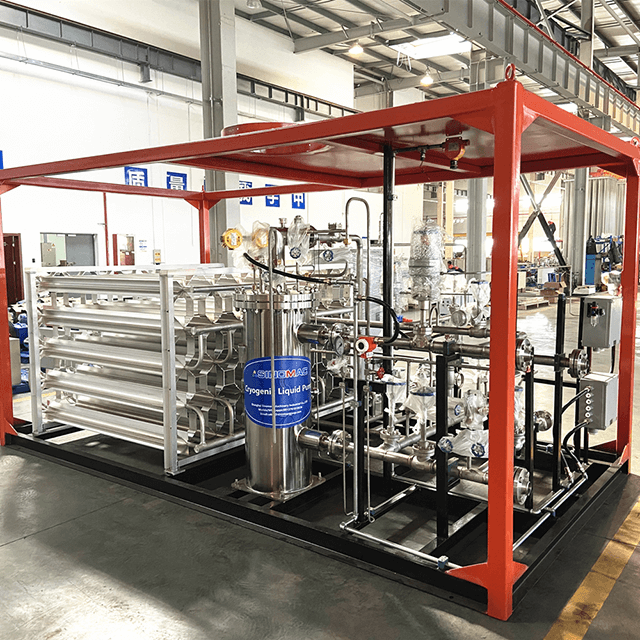

LNG Submerged Pumps Skid
An LNG Submerged Pumps Skid is a specialized equipment designed for the efficient and safe transportation of Liquefied Natural Gas (LNG). This device typically includes one or more submerged pumps that are fully immersed in the cryogenically stored LNG, along with an integrated control system, piping, and valves, all mounted on a prefabricated frame or skid. The design of this setup allows for easy installation and mobility while ensuring high operational safety and efficiency.
LNG Submerged Pumps Skids are widely used in the LNG industry, including in the production, storage, and distribution processes of LNG. The design of these devices is aimed at meeting the industry's need for efficient and safe LNG transportation solutions, especially in the context of the rapidly growing LNG market.
The Mobile L-CNG high pressure gas filling skid-mounted is suitable for the LNG gas station transformation, the LNG bus station loading and the CNG high pressure pipe network gas supply.
Model | MUBP1200 | MUBP1500 | MUBP2000 | MUBP2500 | MUBP3000 | MUBP5000 |
Inlet Pressure(Mpa) | 0.02-1.2Mpa |
Outlet Pressure(Mpa) | 25Mpa |
Pump Flow(Nm3/h) | 720 | 900 | 1200 | 1500 | 1800 | 3000 |
Power(kw) | 18.5 | 22 | 30 | 37 | 45 | 75 |
Standard Configuration | L-CNG high pressure cryogenic liquid pump, EAG high pressure discharge system, high pressure gasification system, PLC automatic control system |
Optional Configuration | Tank car pressure booster system, low temperature hose, instrument air system, computer electrical monitoring system, filling metering system |
Product Features:
1. Small operation vibration, good sealing performance, no leakage
2. Large flow, high efficiency, 24 hours continuous working
3. Compared with compressor, it has obvious advantage of energy saving, and energy consumption is 1/6-1/10 of compressor.
4. Easy installation, less investment, economic benefits
